From single-chair convenience to 24/7 high-volume production, the UP3D P53, P53DC and P55D deliver precision dry milling without compromise — paired with the V10 Smart Clean System for a dust-free workflow.
Every model below runs true 5-axis simultaneous dry milling. The right one for your lab depends on volume, footprint and how hands-off you want production to be.

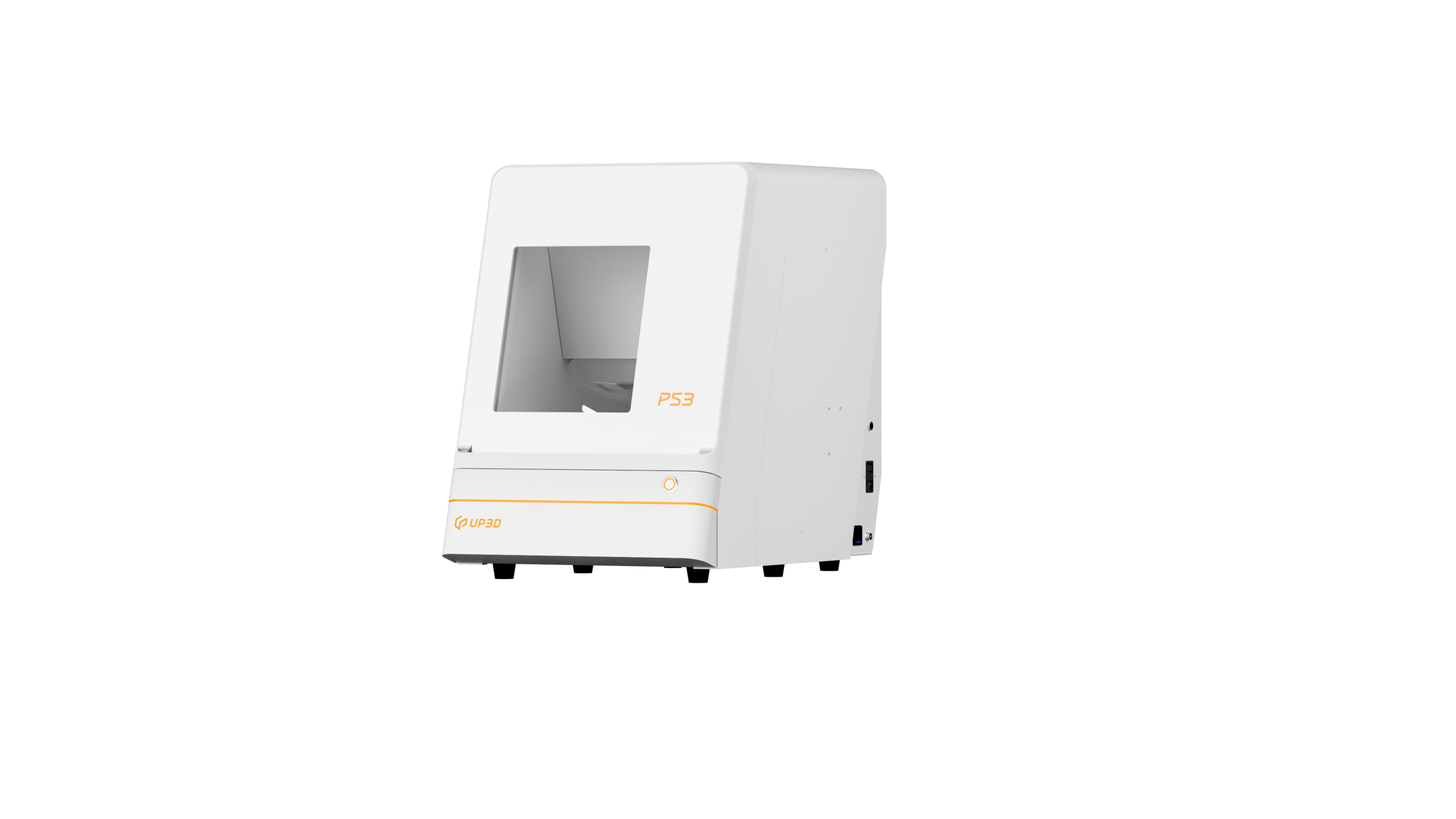

A stable, sliding-dust-cover dry mill with 90° vertical milling and an 11-tool automatic changer — built for consistent daily production with minimal maintenance.

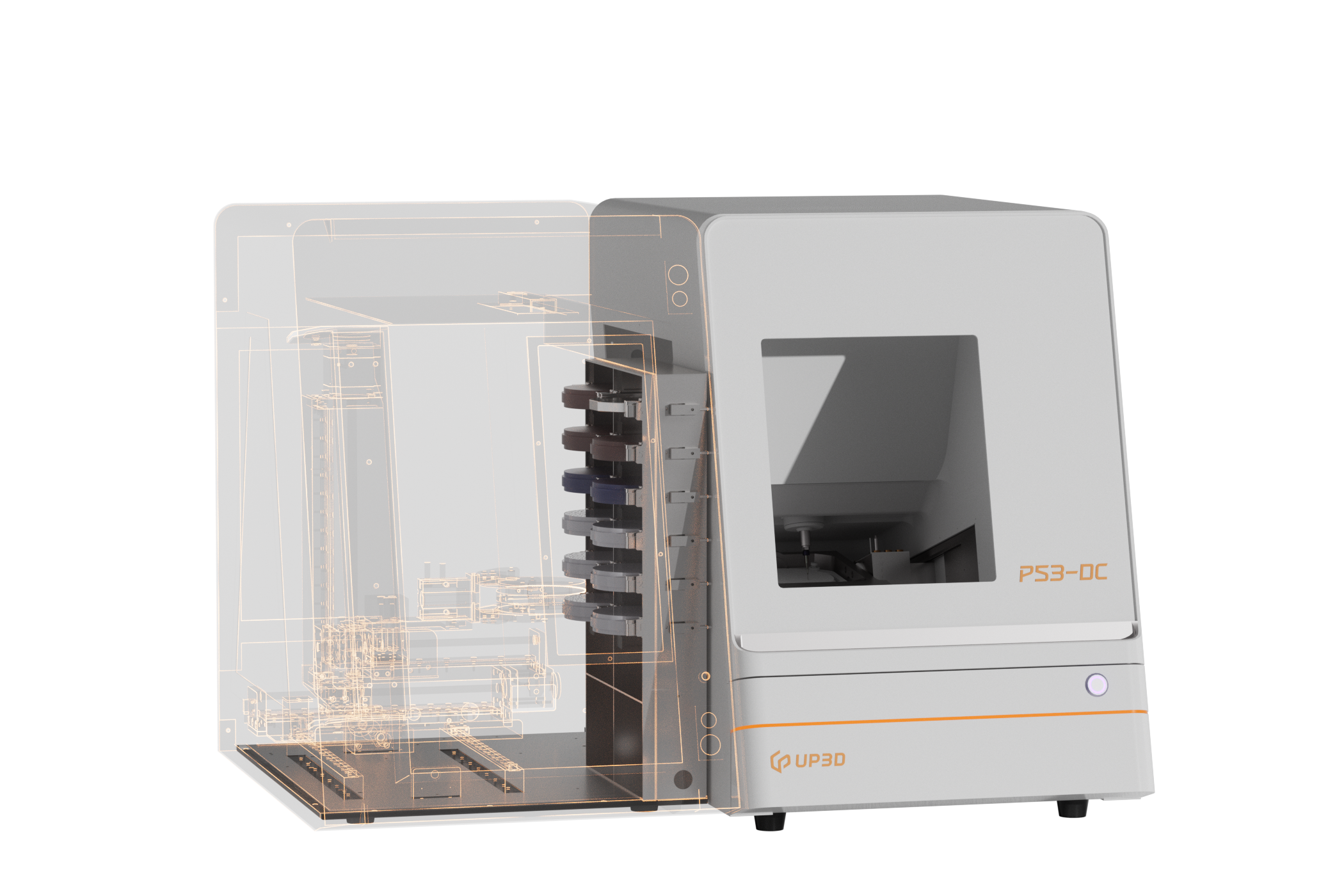

A 12-disc automatic changer with Smart Material Management and an ionizer for cleaner resin milling — engineered for unattended overnight production runs.

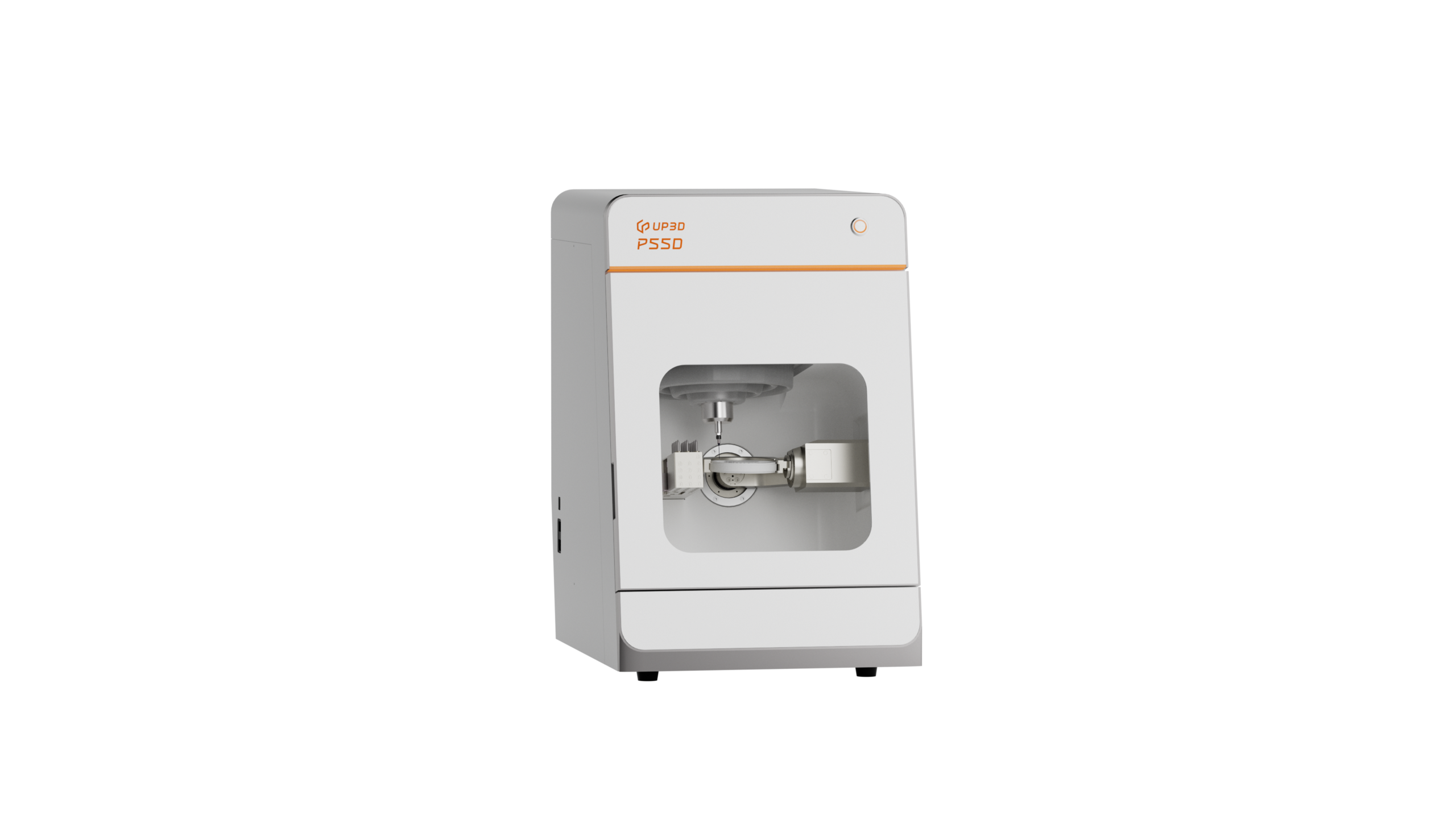

A true plug-and-mill unit with a 60,000 rpm German spindle, 13-tool changer and Smart Servo vibration control — no compressed air line required.
| P53 | P53DC | P55D | |
|---|---|---|---|
| Best For | Daily single/mid-volume production | High-volume, 24/7 unattended runs | Compact chairside / no compressed air |
| Disc Changer | Manual, single disc | Automatic — up to 12 discs | Manual, single disc |
| Tool Capacity | 11 tools | 11 tools | 13 tools |
| Max Spindle Speed | 60,000 rpm | 60,000 rpm | 60,000 rpm |
| Compressed Air Required | Yes (0.15–0.20 MPa) | Yes (0.5–0.8 MPa) | No — plug & mill |
| Remote Monitoring | MillMind app | MillMind + DentalStation (LAN) | MillMind app |
| Weight | 87 kg | 138 kg | 106 kg |
A 5-axis solution designed for daily production — easy to run, consistent in results, and ready for long shifts. A sliding dust cover keeps the lead screw and internals clean, minimizing maintenance.
Engineered for high-throughput labs: a fully automated 12-disc changer, Smart Material Management (one-click order import, intelligent material assignment, smart nesting), and a high-concentration ionizer for cleaner resin milling.
Engineered for labs and practice labs: clean, quiet, high performance — without an external air supply. A high-speed German spindle and Smart Servo system minimize vibration and compensate micron-level motion error in real time.
Core engineering and software carry across the P53, P53DC and P55D, so switching models later doesn't mean relearning your workflow.
0.3mm micro-carving and 0.6mm extended burs capture occlusal detail and reduce manual finishing.
Precise access to labial and buccal surfaces for anterior aesthetics and long-span bridges.
Expands buccal milling space for better material utilization near the disc border.
Check machine status, tool life and smart alerts from your phone or tablet — from anywhere.
Built-in temperature monitoring and overload protection extend service life under heavy loads.
Automatic nesting, toolpath simulation and real-time production control included with every unit.

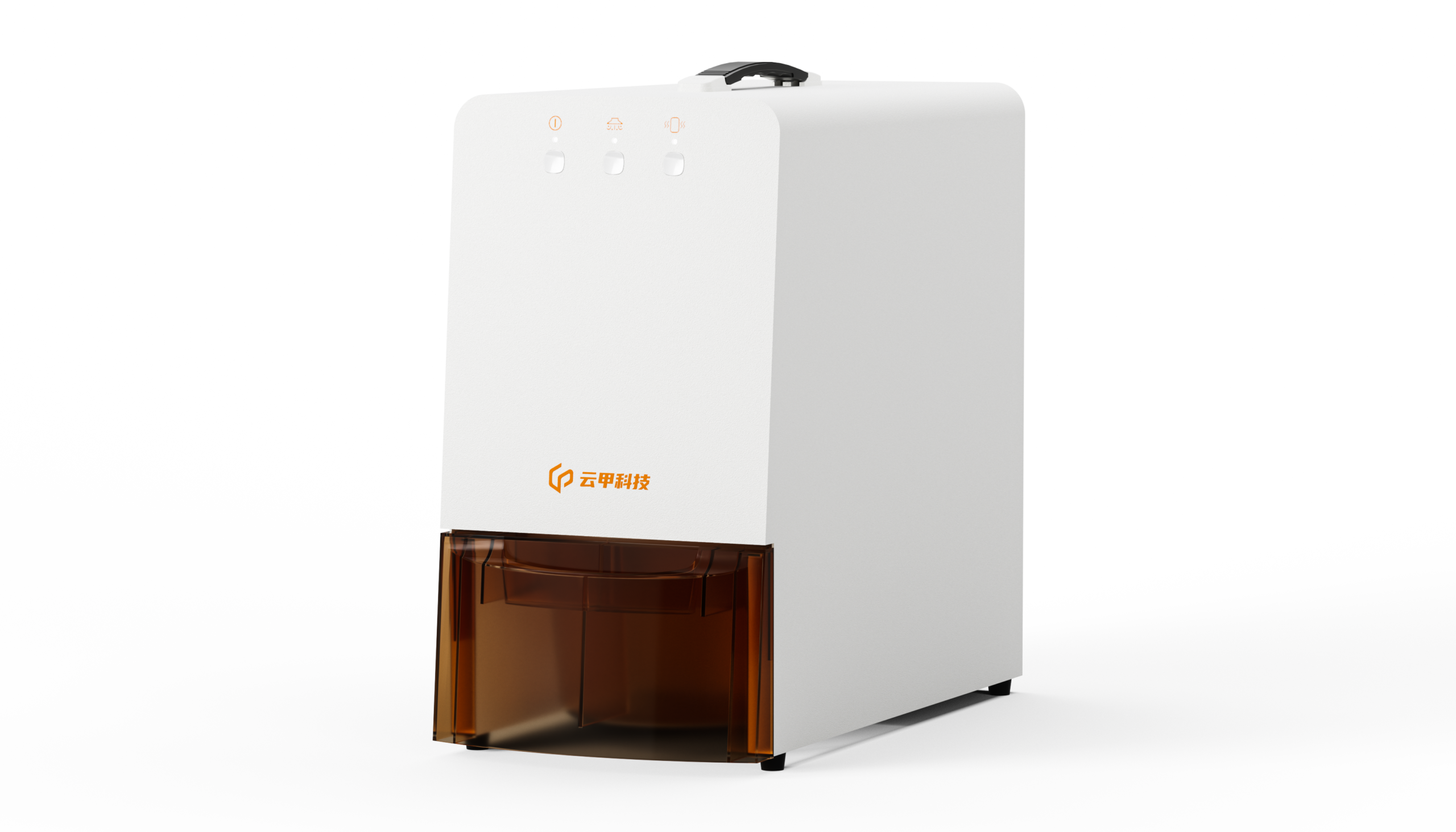

An intelligent vacuum cleaner developed by Cloud A Technology, the V10 pairs directly with UP3D dry mills — instantly responding through its Linkage System for a cleaner, more hygienic production environment.
Links directly to the P53-series intelligent milling machine and responds instantly during operation.
An easily removable dust drawer keeps cleanup fast and the work area genuinely dust-free.
Lower working noise and a longer service life compared to conventional brushed vacuum motors.
Spec sheets and brochures for every model in the UP3D lineup, straight from the manufacturer.
Whether you're outfitting a new lab or adding high-volume capacity, our team can help you choose between the P53, P53DC and P55D.
Specifications sourced from UP3D's official product documentation and subject to change by the manufacturer. Confirm current specs and availability with your S.I.N. 360 representative before finalizing a purchase.
24/7 Automation: 8-fold blank changer (standard) + 20-tool magazine for round-the-clock autonomy. Supports up to a 15-fold blank changer.
Rock-Solid Build: Polymer concrete chassis and advanced clamping for minimal vibration
Ease of Use: Full HD touch interface and SmartControl™ software—start milling with just two clicks
Material Versatility: Handles zirconia, titanium, PEEK, wax, ceramics, and more

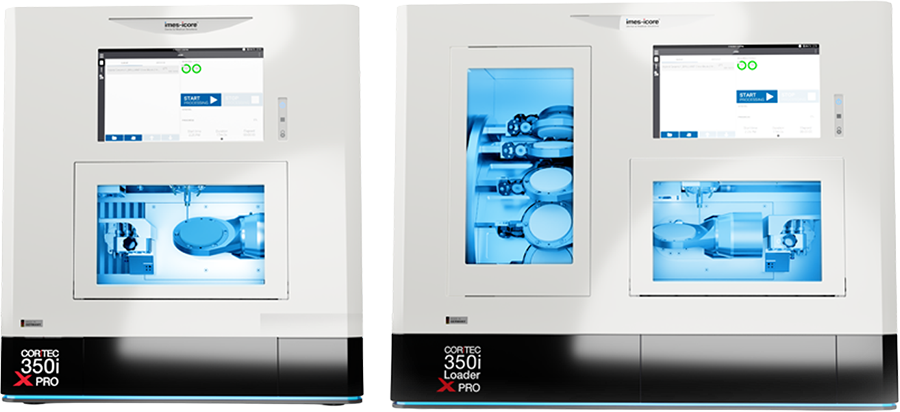

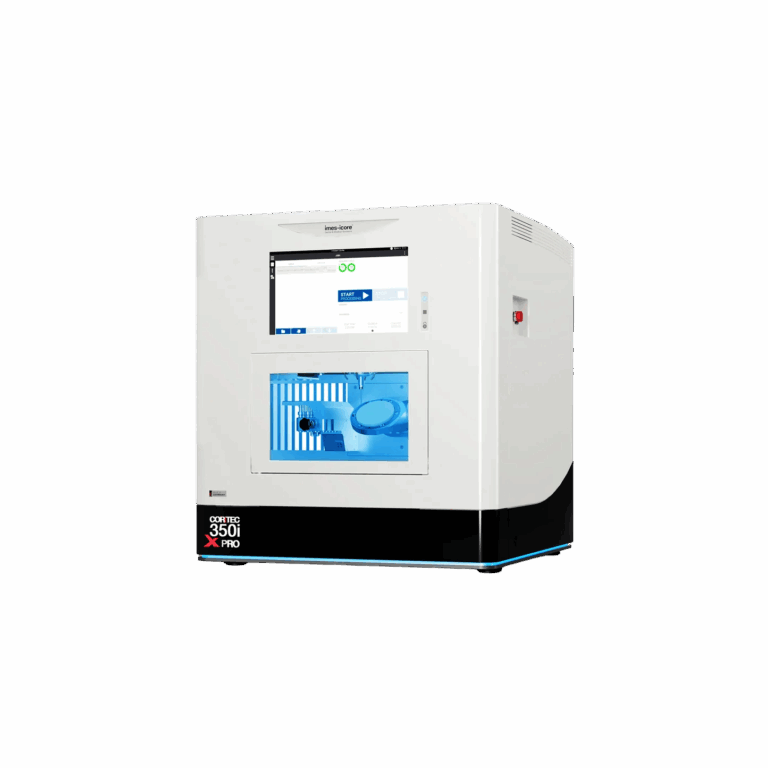

The most advanced CAD/CAM dental milling machine on the market —built for speed, precision, and automation. The CORiTEC 350i X PRO elevates productivity with a supercharged 3 kW spindle running at up to 60,000 RPM, ultra-dynamic servo drives, and fully automated blank & tool handling.
Zero-point clamping system for quick, precise blank or adapter changes.
Integrated wet and dry processing capability, adaptable for diverse materials.
15″ HD touchscreen with integrated PC, and temperature compensation for consistent performance.
Processes a broad range of materials, including zirconia, glass ceramics, CoCr, titanium, PMMA, PEEK, composites, and more.
The CORiTEC 350i PRO+ is a state-of-the-art 5-axis milling system engineered for uncompromising accuracy, speed, and material versatility. With a powerful 2.6 kW water-cooled spindle, vibration-free polymer concrete frame, and support for wet and dry processing, it delivers flawless results across zirconia, glass ceramics, titanium, CoCr, PEEK, PMMA, and more.
