MicronMapper
Capture Implant Positions With Precision. Deliver Full Arch Cases With Confidence.
Photogrammetry Built For The Full Arch Workflow
MicronMapper records the exact three-dimensional position of every implant in a single five-second capture — eliminating the cumulative stitching error of intraoral scanning across a full arch. The result is a passive-fitting prosthesis, fewer adjustments, and fewer remakes.
- Micron-level accuracy — under 25 µm, no stitching error
- Pre-calibrated — no warm-up, no calibration plates
- Complete toolkit — scanbodies, Tissue Mapper, FitCheck and Stage 2 tools
< 25 µm
Micron Accuracy
99.9%
Passive Fit
:05 sec
Complete Scan
1.1 lbs
Lightweight & Ergonomic
1,000+
MicronMappers Sold
Why Photogrammetry Changes Full Arch
Intraoral scanners stitch small images together, and error builds with every implant across the arch. MicronMapper measures all positions at once.
01
Unparalleled Precision
Accurate measurement of implant positions — under 25 µm — supports a passive fit and proper function of the final prosthesis.
02
Five-Second Capture
Every implant position is recorded in one data set in about five seconds, so the full arch is measured, not estimated.
03
Pre-Calibrated & Easy To Use
Factory calibrated with no warm-up or pre-scan calibration. Enter the patient name and jaw, scan, and send the files to the lab.
04
Dual-Purpose Scanbodies
The same scanbodies work for photogrammetry and soft-tissue intraoral scans, simplifying the workflow.
05
Fully Digital Workflow
Removes the need for physical models, reducing chair time and overall treatment duration.
06
Lightweight & Ergonomic
At just 1.1 lbs, MicronMapper is easy to position chairside for consistent, repeatable captures.
How MicronMapper Compares
MicronMapper against other advanced photogrammetry systems.
| Spec | Competing Systems | MicronMapper |
|---|---|---|
| Accuracy | < 75 µm | < 25 µm |
| Scan Time | < 5 Minutes | 5 Seconds |
| Weight | < 5 lbs | 1.1 lbs |
| Calibration | Calibration Plates | Pre-Calibrated |
| Accessories | None | Full EcosystemSoft Tissue: Tissue Mapper · Accuracy: FitCheck, Accuracy Checking Model, Stage 2 Alignment Kit · Scanbodies: Split, Micro MUA Split, Locator, 1.6mm-Screw Split Bases |
From Surgery To Final Prosthesis
01
Seat Scanbodies
Place Unibody, Split, Micro MUA, or Locator scanbodies on the abutments.
02
Enter Patient & Jaw
No warm-up and no calibration — just enter the patient name and select the jaw.
03
Scan
Capture every implant position in a single scan, in about five seconds.
04
Send & Verify
Send the files to the lab for design, then use FitCheck to confirm accuracy before seating.
Choose Your MicronMapper System
Available in two configurations — Unlimited and Flex — each offered with either a Unibody or Split Scanbody package.
MicronMapper Unlimited
with Unibody Scanbodies · REF: 955-MM1-50BL-12L
- Unlimited scan capacity — no per-scan fees
- Includes Unibody Scanbody set
- Full photogrammetry workflow support
- Ideal for high-volume full-arch practices
Need pricing? Ask us!
MicronMapper Unlimited
with Split Scanbodies
- Unlimited scan capacity — no per-scan fees
- Includes Split Scanbody set
- Supports multiple abutment platforms
- Recommended for complex implant cases
Need pricing? Ask us!
MicronMapper Flex
with Unibody Scanbodies
- Includes 75 scans
- Additional scan packs purchasable
- Includes Unibody Scanbody set
- Lower entry cost for growing practices
Need pricing? Ask us!
MicronMapper Flex
with Split Scanbodies
- Includes 75 scans
- Additional scan packs purchasable
- Includes Split Scanbody set
- Flexible platform for diverse cases
Need pricing? Ask us!
Unlimited — Designed for high-volume practices. Scan as many patients as needed with no additional per-scan costs after purchase.
Flex — Ideal entry point for practices building their photogrammetry workflow. Comes with 75 scans; additional scan packs can be purchased as needed.
What's In The Box
Everything you need to start capturing on day one.
- MicronMapper camera
- Scanbody set (Unibody or Split)
- Accuracy checking model
- PRH 30 screws (4-pack)
- Smart Angle screws (sample pack)
- Table mount & travel case
A Scanbody For Every Case
Capture implant position data across multi-unit, micro multi-unit, non-standard, and locator abutment platforms.
Unibody Scanbodies
REF: Sets 00–09 (replacement), 10–19, 20–29, 30–39, 40–49
Quantity
10 Scanbodies per set
Material
TECA PEEK
Capture photogrammetry data on implant abutment locations for full-arch restorations.
- Single-piece design simplifies chairside placement
- Biocompatible TECA PEEK body
- Compatible with Unlimited and Flex systems
Split Scanbodies
REF: Split Scan Bodies (Set 0–7)
Quantity
8 Tops + 16 Bases
Material
Titanium and TECA PEEK
Capture the location and relative positions of implant abutments.
- Base diameter matches standard abutment diameter
- Radiopaque design for dual imaging
- Built-in screw for simplified placement
- Multiple base options for different platforms
Micro MUA Split Scanbodies
REF: 955-MM1-SMNI-BDY-0
Quantity
8 Scanbodies
Material
Titanium
Bases for Split Scanbodies that fit on Micron Mini abutment platforms.
- Designed specifically for micro multi-unit abutments
- Titanium construction for long-term stability
- Extends the workflow to smaller abutment geometries
1.6mm-Screw Split Bases
REF: 950-MM1-SS16-BSE-8
Quantity
8 Bases
Material
Titanium
Bases for Split Scanbodies designed for non-standard multi-unit abutments with a 1.6mm screw.
- Captures data for non-standard MUA connections
- Precision-machined titanium
- Expands Split Scanbody compatibility
Locator Scanbodies
REF: 950-MM1-SPLT-LOC
Quantity
6 Scanbodies
Material
TECA PEEK
Scanbodies designed for locator abutment snap-on denture cases.
- Captures location and relative positions of locators
- Photogrammetry data for implant-retained dentures
- Interfaces precisely with standard locator geometry
S.I.N. exclusive product. Contact your S.I.N. representative for availability.
More Than A Positional Scan
Clinical tools that extend photogrammetry to soft tissue, quality verification, and the stage 2 appointment.
Tissue Mapper
REF: 955-MMt-TSMP-ASY-A
Quantity
1 Probe + 2 Tips
Material
PEEK with Stainless Steel Tips
Replaces post-operative tissue IOS scanning with photogrammetry-based capture.
- Eliminates difficult intraoral post-op tissue scans
- Specialized probe designed for photogrammetry
- Interchangeable stainless steel tips
- Used with CBCT workflow
FitCheck Scanbodies
REF: Fit Check
Quantity
8 Scanbodies
Material
Titanium and TECA PEEK
Verify the manufacturing accuracy of a prosthetic bridge after 3D printing or sintering.
- Verifies a bridge did not warp during fabrication
- Confirms accuracy before seating the final
- Titanium base for dimensional stability
- Reduces follow-up patient appointments
Stage 2 Alignment Kit
REF: MM Stage 2 Alignment Kit
Quantity
6 Sandblasted ADMA Analogs
Material
Titanium
Used when gathering data for a patient's final restoration at the stage 2 surgical appointment.
- Jaw scan alignment without soft tissue landmarks
- Improves bite relationship accuracy between arches
- Sandblasted surface improves target recognition
S.I.N. exclusive product. Contact your S.I.N. representative for availability.
We Support Practices And Labs
From installation to your hundredth arch, the S.I.N. 360 team helps your clinic and your lab get accurate results from MicronMapper.
For Practices
Get the camera running chairside and your team confident with the workflow.
Installation & Training
Setup and hands-on onboarding for your clinical team. Learn more
In-Office Digital Workflow Training
Training in your practice on the full-arch digital workflow. Learn more
Quick-Watch Support Videos
Short videos for scanning, scanbody placement and troubleshooting. Watch now
CE Courses
Continuing education led by industry-leading doctors. View courses
For Labs
Receive accurate data and the tools to design, verify, and deliver with confidence.
Exocad Libraries
MicronMapper libraries for Exocad so captures drop straight into design. Downloads
Files Straight From The Chair
Practices scan and send — no physical models to pour, ship, or digitize.
Verify Before Delivery
FitCheck and the Accuracy Checking Model confirm milled or printed work before it reaches the patient.
Parts & Scanbody Orders
Replacement sets and specialty bases on the eShop or by email. orders@sin360.us
Save Chair Time. Protect Your Margins.
Every remake costs appointments, materials, and patient confidence. MicronMapper gives the clinic and the lab the same accurate data from the start.
- Reduce wasted appointments caused by misfit frameworks
- Catch sintering or printing errors before seating
- Streamline conversion and final delivery visits
- Integrates with the S.I.N. 360 full arch workflow
Downloads
You Might Also Like

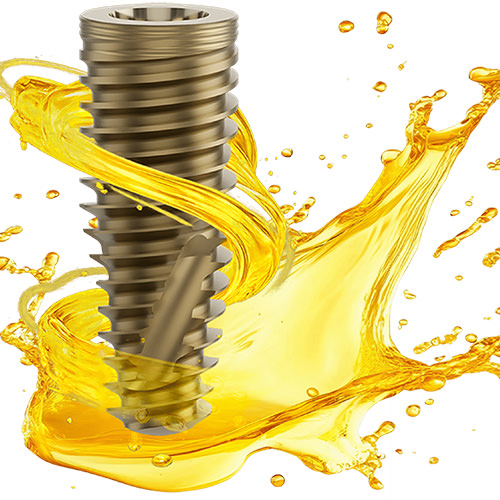

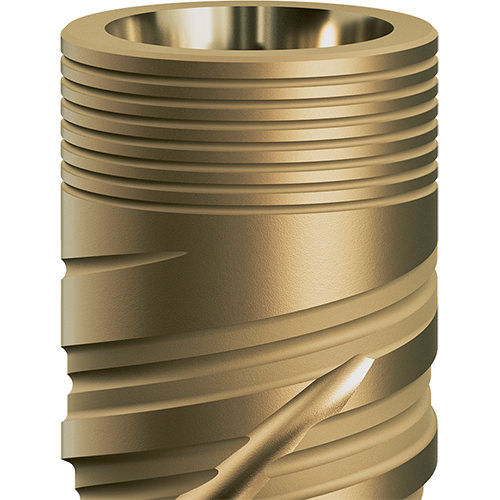

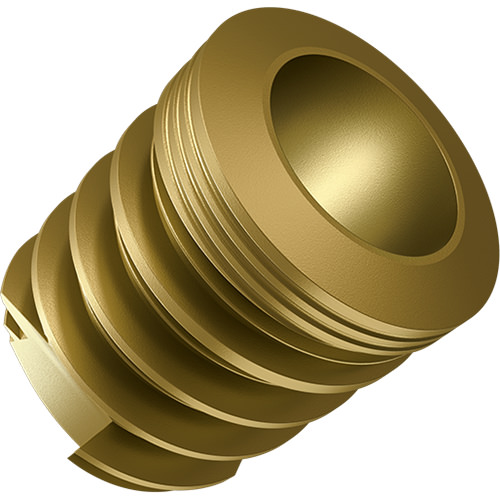

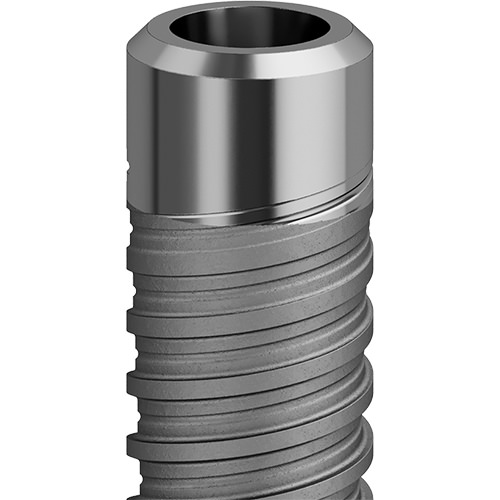

More implant systems built for full-arch and single-unit treatment planning.
