S.I.N. Implant System — Morse Taper 16°
Versalis
Versatility. Performance. Control.
One Connection. One Kit. Every Case.

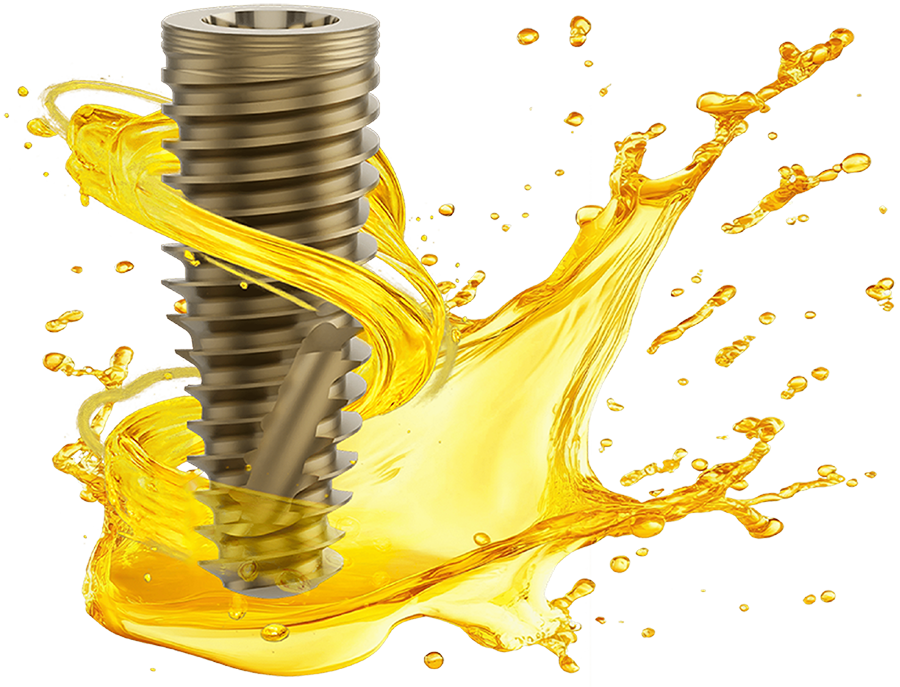

Versatility Elevated To Art
Versalis pairs a conical core, dual-thread body and cutting apex for easier bicortical engagement and predictable torque in every bone type — from a single 3.5 mm incisor to 24 mm full-arch anchorage, all placed with one surgical kit.
- Hybrid dual-tapered design — reliable primary stability, soft to dense bone
- Plus surface — double acid-etched with HAnano hydroxyapatite coating
- One 16° Morse taper platform — Ø2.72 mm exit across every diameter
200,000+
Implants Placed
99.9%
Success Rate
16°
Morse Taper Connection
8.5–24 mm
Lengths, One Kit
Ø3.5–7.0
Seven Diameters
Key Features
Engineered Like Art. Crafted For Versatility.
A hybrid implant with a simple preparation sequence — designed for soft and hard bone, beginners and advanced full-arch surgeons alike.
01
Dual-Tapered Hybrid Body
Greater taper in the apical third, less in the middle-cervical third — balancing compression and stress distribution for bicortical stability in bone types I–IV.
02
Cutting Apex
No extra steps, no over-prep. Versalis cuts its own path to high initial stability with minimal bone trauma — even in thin cortical bone near the sinus or nasal floor.
03
Dual Thread, 0.75 mm Pitch
Buttress-style threads with variable height act as compressive or cutting threads. Faster insertion, stable from the start.
04

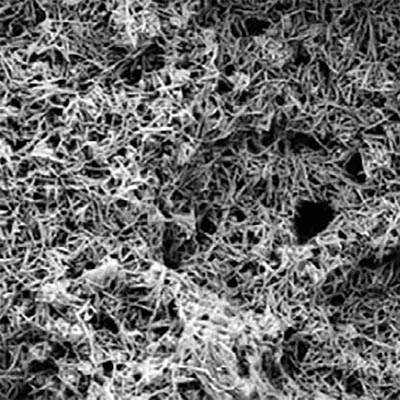

Plus Surface
Double acid-etching followed by a nanometric hydroxyapatite coating (HAnano) — developed with leading Swedish universities and backed by 50+ preclinical studies.
05

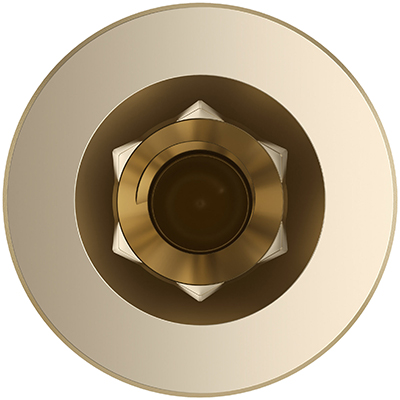

One Connection Platform
A 16° Morse taper with 2 mm hex index and Ø2.72 mm exit — platform switching on every diameter, shared with Epikut, Unitite and Zygomatic.
06
Cold-Worked Grade IV Titanium
Lightweight and highly resistant to corrosion, wear and fracture, with surface treatment across the entire implant body.
Side By Side
Two Models. Multiple Possibilities.
Versalis for standard cases. Versalis Long for greater anchorage and bicortical engagement.
Versalis
Versalis Long
| Spec | Versalis | Versalis Long |
|---|---|---|
| Diameters | Ø3.5, 3.8, 4.0, 4.3, 5.0, 6.0, 7.0 mm | Ø3.8, 4.0, 4.3 mm |
| Lengths |
8.5, 10, 11.5, 13, 15, 18 mm Ø6.0 & Ø7.0 up to 13 mm | 20, 22, 24 mm |
| Indication | Single-tooth to full-arch, all bone types, post-extraction sites | Maxilla — total edentulism, bone types III & IV |
| Loading | Immediate or delayed | Immediate or delayed |
| Connection | MT 16° · Ø2.72 mm exit | MT 16° · Ø2.72 mm exit |
| Surfaces | DAE or Plus (DAE + HAnano) | DAE or Plus (DAE + HAnano) |
| Surgical Kit | KCSV 01EN | KCSV 01EN — same kit |
How It Works
From Osteotomy To Restoration
01
Read The Bone
Follow the kit's dotted line for soft bone or the solid line for hard bone — "H" drills are marked in black.
02
Drill The Sequence
Lance and 2.0 mm helical at 1200 rpm, then progressive conical drills at 800 rpm under constant irrigation.
03
Place 1.5 mm Subcrestal
Insert at 20–40 rpm, max 80 N·cm. Immediate loading at 45–80 N·cm of primary stability.
04
Restore On One Platform
Choose from the MT 16° prosthetic line — analog or digital, single-unit to full-arch.
Implant Lines
Choose Your Versalis
Available as Versalis and Versalis Long — each offered with a DAE or Plus surface.
DAE
Versalis DAE
Double acid-etched · REF: IVMT xxxx
- Ø3.5–7.0 mm · 8.5–18 mm
- Double acid-etching on the entire surface
- 4–6 month healing period
- Single-tooth to full-arch cases
PLUS
Versalis Plus
DAE + HAnano · REF: IVMT xxxxN
- Ø3.5–7.0 mm · 8.5–18 mm
- Nanometric hydroxyapatite coating
- 3–4 month healing period
- Enhanced bone response in challenging conditions
LONG · DAE
Versalis Long DAE
Double acid-etched · REF: IVMT 38xx / 40xx / 43xx
- Ø3.8, 4.0, 4.3 mm · 20–24 mm
- Greater anchorage and bicortical engagement
- Bone types III & IV in the maxilla
- Placed with the same KCSV 01EN kit
LONG · PLUS
Versalis Long Plus
DAE + HAnano · REF: IVMT 38xxN / 40xxN / 43xxN
- Ø3.8, 4.0, 4.3 mm · 20–24 mm
- HAnano surface for low-density bone
- Total edentulism & post-extraction sites
- Immediate or delayed loading
DAE — Double acid-etched titanium for strong osseointegration in all bone types, with a typical 4–6 month healing period.
Plus — DAE plus a nanometric HAnano layer that keeps the surface highly wettable throughout shelf life, with a typical 3–4 month healing period.
Instrumentation
One Kit For Every Length

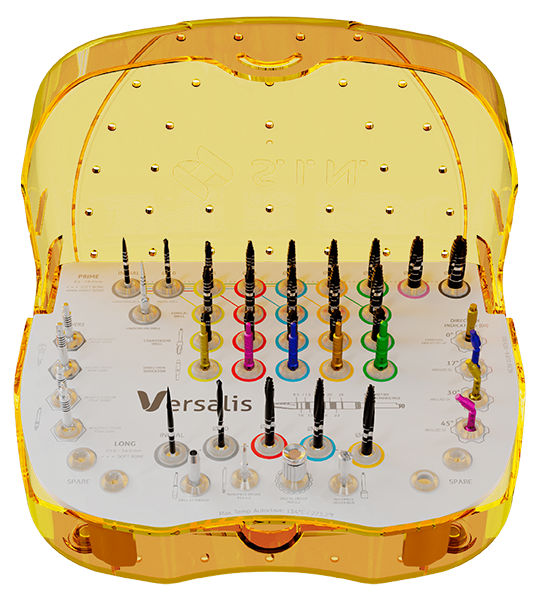

The Versalis surgical kit (KCSV 01EN) places every implant from 8.5 to 24 mm. Its linear, color-coded layout runs left to right by diameter, with a dotted line for soft bone and a solid line for hard bone — so the sequence is clear at a glance.
8.5–24 mm
Standard & Long
DLC
Coated drills, less heat
2
Torque wrench options
Inside The Kit
Everything needed to place standard and long implants — no second kit required.
- Lance & Ø2.0 helical drills (standard + long)
- Soft-bone conical drills Ø3.5–7.0
- Hard-bone "H" conical drills Ø3.5–5.0
- Long conical drills Ø3.8, 4.0, 4.3
- Countersink & Lindemann drills
- DLC-coated drills — less bone heating
- Straight + 17°, 30°, 45° direction indicators
- Dual-ended depth probe (standard / long)
- MT 16° gingival height gauge & drill extensor
- Implant & prosthetic drivers
- Two torque wrench options
Diameters
A Diameter For Every Site
Seven diameters on one 16° Morse taper connection — every one with platform switching.
Anterior
Ø3.5 mm
REF: IVMT 35xx / 35xxN
Central and lateral incisors, upper and lower.
Narrow implants are intended for the anterior region only.
Shop Now →
Anterior · Premolar
Ø3.8 mm
REF: IVMT 38xx / 38xxN
Central and lateral incisors (upper), canines and premolars.
Shop Now →Anterior · Posterior
Ø4.0 mm
REF: IVMT 40xx / 40xxN
Central incisors (upper), canines, premolars and molars.
Shop Now →

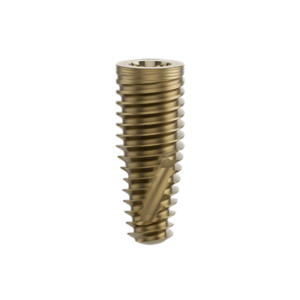

Posterior
Ø4.3 mm
REF: IVMT 43xx / 43xxN
Canines, premolars and molars.
Shop Now →
Molar
Ø5.0 mm
REF: IVMT 50xx / 50xxN
Molar sites with full soft- and hard-bone drill options.
Shop Now →

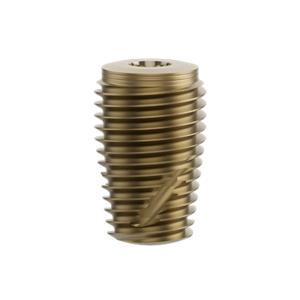

Wide Molar
Ø6.0 & Ø7.0 mm
REF: IVMT 60xx / 70xx (+N)
Wide molar and post-extraction sites — same connection, same kit.
Shop Now →The MT 16° Prosthetic Line
Single Connection. Smarter Workflow.
One prosthetic platform for every Versalis diameter and length — analog or digital, single-unit to full-arch.
Full Arch
Multi-Unit Abutments
Multiple screw-retained restorations, with titanium and chrome interfaces, scanning jigs and digital analogs.
Compact Full Arch
Micro Multi-Unit
A lower-profile screw-retained option where restorative space is limited.
Digital
Titanium Interface MT 16°
Ti bases for direct-on-implant digital restorations with matching digital analogs.
Cement Retained
Universal Abutments
Straight and 17° angled cemented abutments for single restorations.
Screw Retained
Conical & Multifunctional
Flexible screw-retained abutments with transfers, analogs and calcinable / Co-Cr cylinders.
Custom
Pre-Milled Abutments
Lab-milled custom abutments on the same MT 16° connection.
Check product availability with your S.I.N. 360 representative.
Support
We Support Surgeons And Labs
From your first osteotomy to your next full arch, the S.I.N. 360 team helps your practice and your lab get predictable results with Versalis.
For Surgeons
Get the kit chairside and your team confident with the protocol.
Implant Surgical Manual
Indications, protocols and placement guidelines. Download
Surgical Kit Guide
Every drill, driver and color code in the KCSV 01EN kit. Download
Implantat Education
S.I.N.'s educational streaming platform. Watch now
Rep & Clinical Support
Pricing, case planning and kit support from your S.I.N. 360 rep. Contact us
For Labs
One connection across every diameter means fewer parts and simpler planning.
Digital Libraries
MT 16° titanium interfaces with S.I.N. and Sirona libraries and digital analogs.
Prosthetic Framework
The full restorative sequence, analog and digital. Download
Shared Prosthetic Platform
The same MT 16° components used with Epikut, Unitite and Zygomatic.
Parts & Component Orders
Implants and prosthetics on the eShop or by email. orders@sin360.us
Built For Every Surgeon
Simplify Your Choices. Amplify Your Outcomes.
Predictable torque, reliable primary stability and one restorative platform — so beginners and advanced full-arch surgeons work from the same system.
- 200,000+ implants placed with a 99.9% success rate
- Reliable torque across all bone types
- Standard, long and wide implants from one kit
- Platform switching on every diameter
- Integrates with the S.I.N. 360 full-arch workflow
Resources
Downloads
Catalogs and manuals for the Versalis implant system.
Watch & Learn
Versalis Videos
See the system, the surface, and the kit in action.
The Art of Precision
Versalis system overview
Next Generation Implant Performance
Design & surface highlights
Kit Presentation
A walkthrough of the KCSV 01EN kit
Drilling Sequence
Soft- and hard-bone protocols
Support
Versalis Support
Request pricing, or get help with an order.
S.I.N. Implant System
You Might Also Like
More systems built for full-arch and single-unit treatment planning.
Epikut
Tapered, conical implant for immediate placement and high primary stability with an aggressive thread pattern.
Learn More →
Epikut Long RA
Extended-length Epikut engineered for remote anchorage protocols in full-arch rehabilitation.
Learn More →
Zygomatic
Extra-long design that anchors into the zygomatic bone for extreme maxillary resorption.
Learn More →
MicronMapper
Photogrammetry that captures every implant position in about five seconds for passive-fit full arches.
Learn More →
200,000 Implants. 99.9% Success.
One kit. One connection. Every case. See how Versalis fits your practice.
