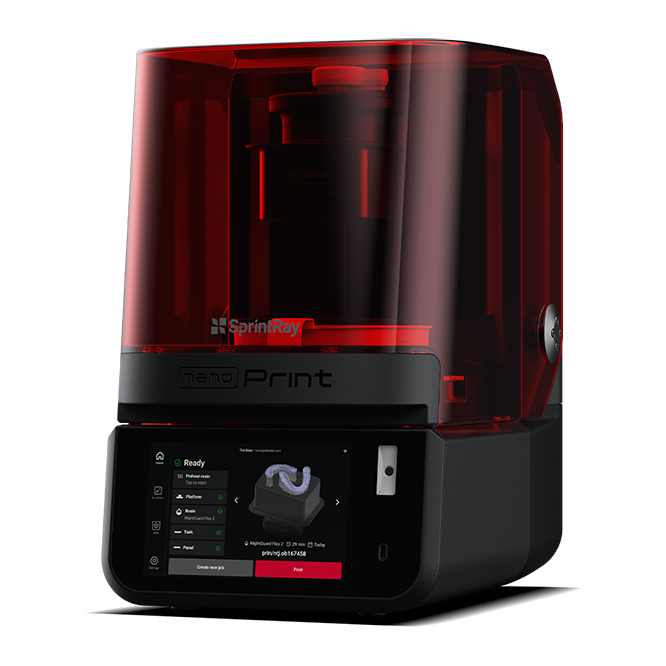

Print
NanoPrint
Compact DLP printer with a guided touchscreen that checks the platform, resin, tank and panel before every job.
- 35 µm optical resolution
- 150 ml RFID resin tank
- 50–170 µm layer thickness
S.I.N. 360 Digital Workflow — 3D Printing
SprintRay Nano Series
Print, Wash and Cure Chairside.
A Complete Workflow In 72 cm.
NanoPrint · NanoWash · NanoCure
The Nano Series is a complete chairside workflow — print, wash and cure — built for everyday dentistry. NanoPrint handles the most common cases, supports the full SprintRay material library and 16 indications, and can accommodate a full denture case, all within a compact 72 cm footprint.
- 35 µm optical resolution — 385 nm UV-A light source
- AutoPrint — automatic nesting, orientation and supports
- Connected — cloud profiles, RFID material detection, remote job queue
35 µm
Optical Resolution
16
Dental Indications
72 cm
Combined Footprint
6 min
Wash & Dry Cycle
2–10 min
Post-Cure Times

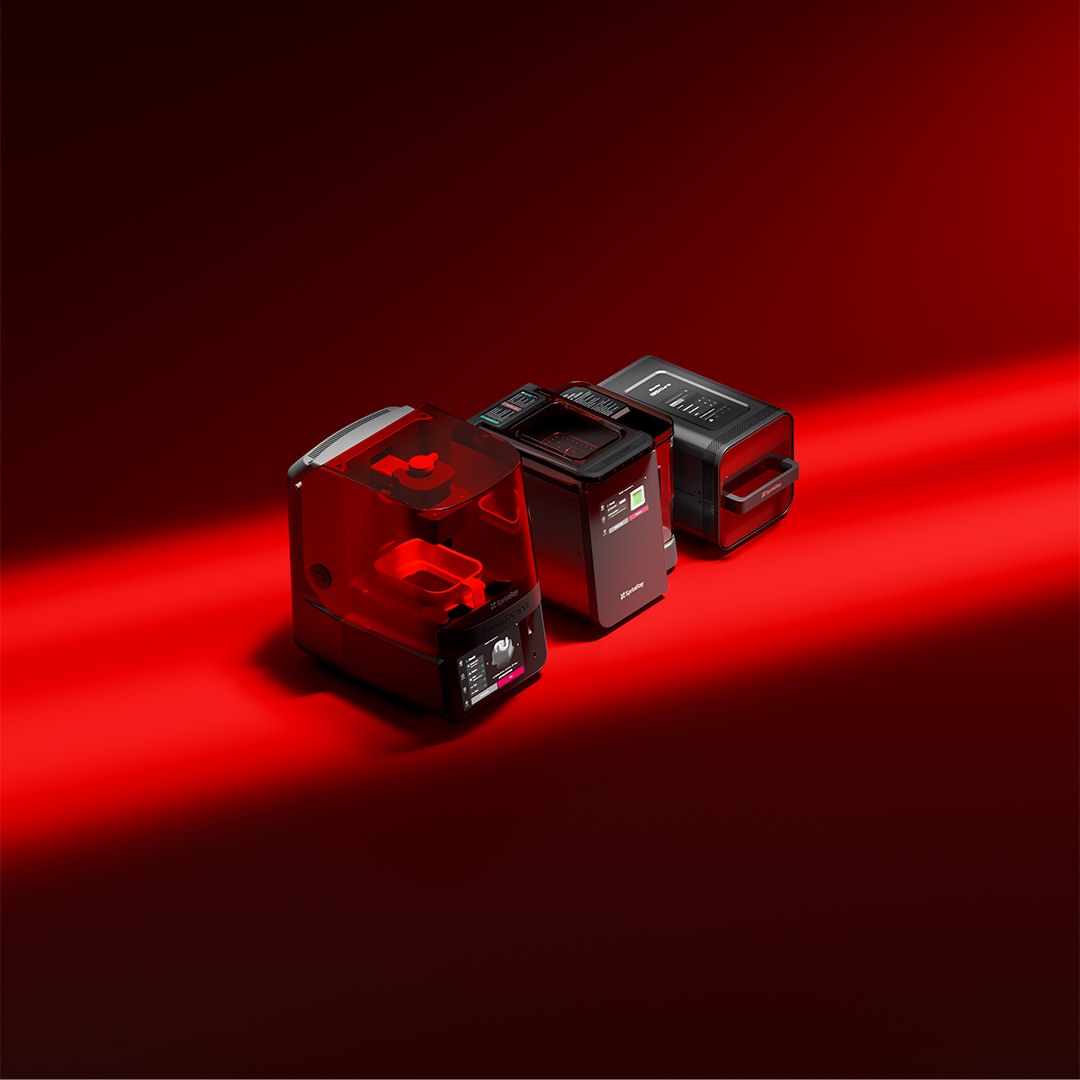

The Ecosystem
Three Devices. One Chairside Workflow.
Each step of production has a dedicated, connected device — so printed parts move from build platform to finished appliance without guesswork.
Wash
NanoWash
Automated wash-and-dry station with a removable solvent tank and on-screen IPA condition monitoring.
- Six-minute wash and dry cycle
- RFID-identified solvent tanks
- Vapor extraction with optional ducting
Cure
NanoCure
Dual-wavelength post-curing with onboard heat for maximum mechanical properties — in minutes.
- 365 nm + 385 nm LEDs
- Thermal management, no nitrogen needed
- Auto-selects resin settings
Key Features
Why Bring Printing Chairside
Faster turnaround, more control over every appliance and fewer outsourced lab steps.
01
Built For Everyday Dentistry
Handles the most common cases — guides, night guards, dentures, models and retainers — with 16 supported indications.
02
Full Denture Capacity
NanoPrint can accommodate a full denture case on a compact build platform.
03
AutoPrint
Automatic nesting, orientation and support generation take the setup work out of every job.
04
RFID Material Detection
Resin and solvent tanks are identified automatically, so the right settings follow the right material.
05
Cloud Connected
Queue jobs, check status and retrieve prints from a laptop, iPad or smartphone, with automatic profile updates.
06
Compact 72 cm Footprint
All three devices fit side by side on a single countertop — about 40% less width than SprintRay's reference setup.

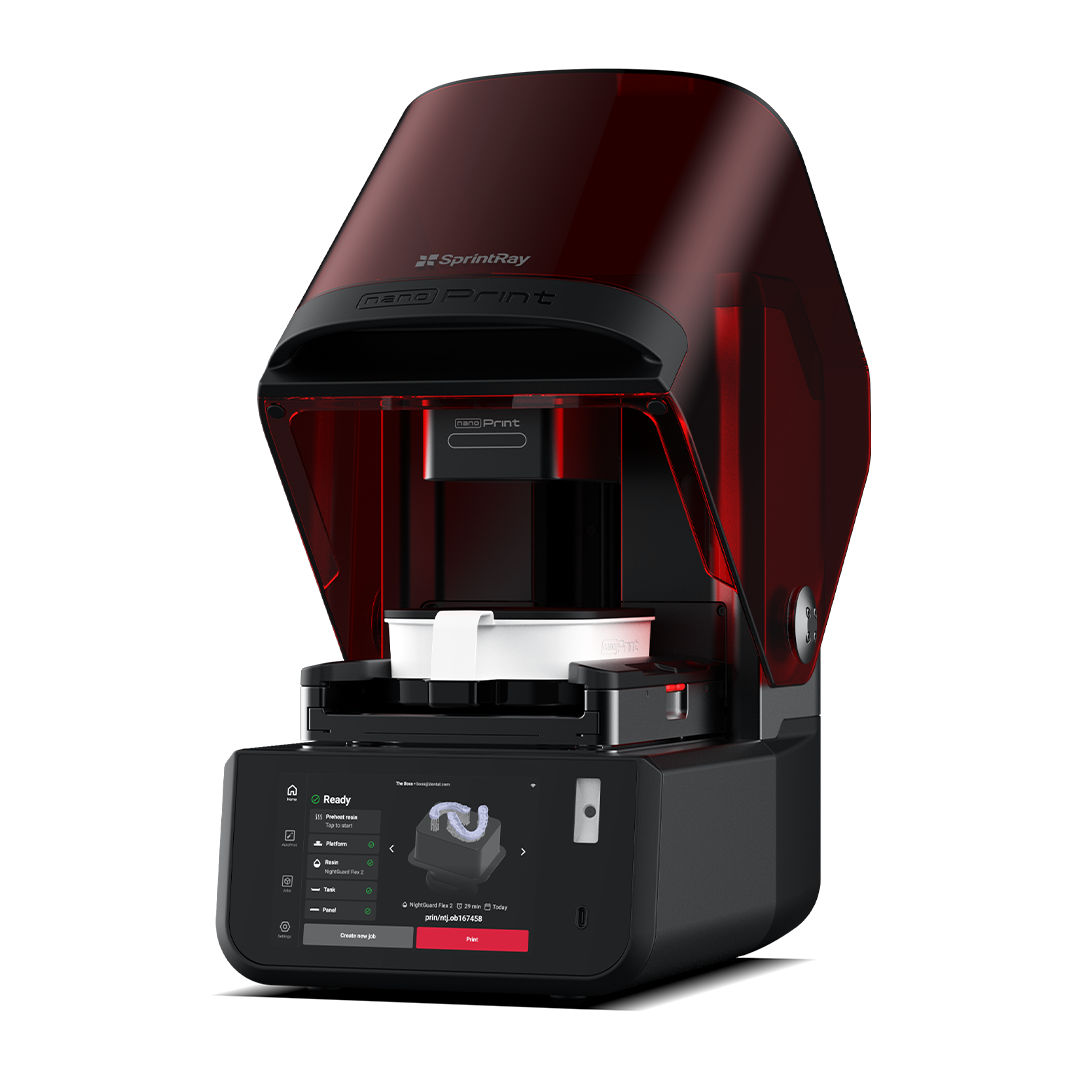

Print
NanoPrint
A compact DLP printer designed around a guided touchscreen — so anyone on the team can start a print with confidence.
- Readiness checks — platform, resin, tank and panel confirmed on screen
- AutoPrint — nesting, orientation and supports generated automatically
- Resin preheat — start warming resin with a tap
- Resin level sensor — RFID tank identifies the loaded material
- Protected tank — rubber lid and storage tray shield the film between uses
35 µm
Optical Res.
385 nm
UV-A Light
150 ml
Resin Tank

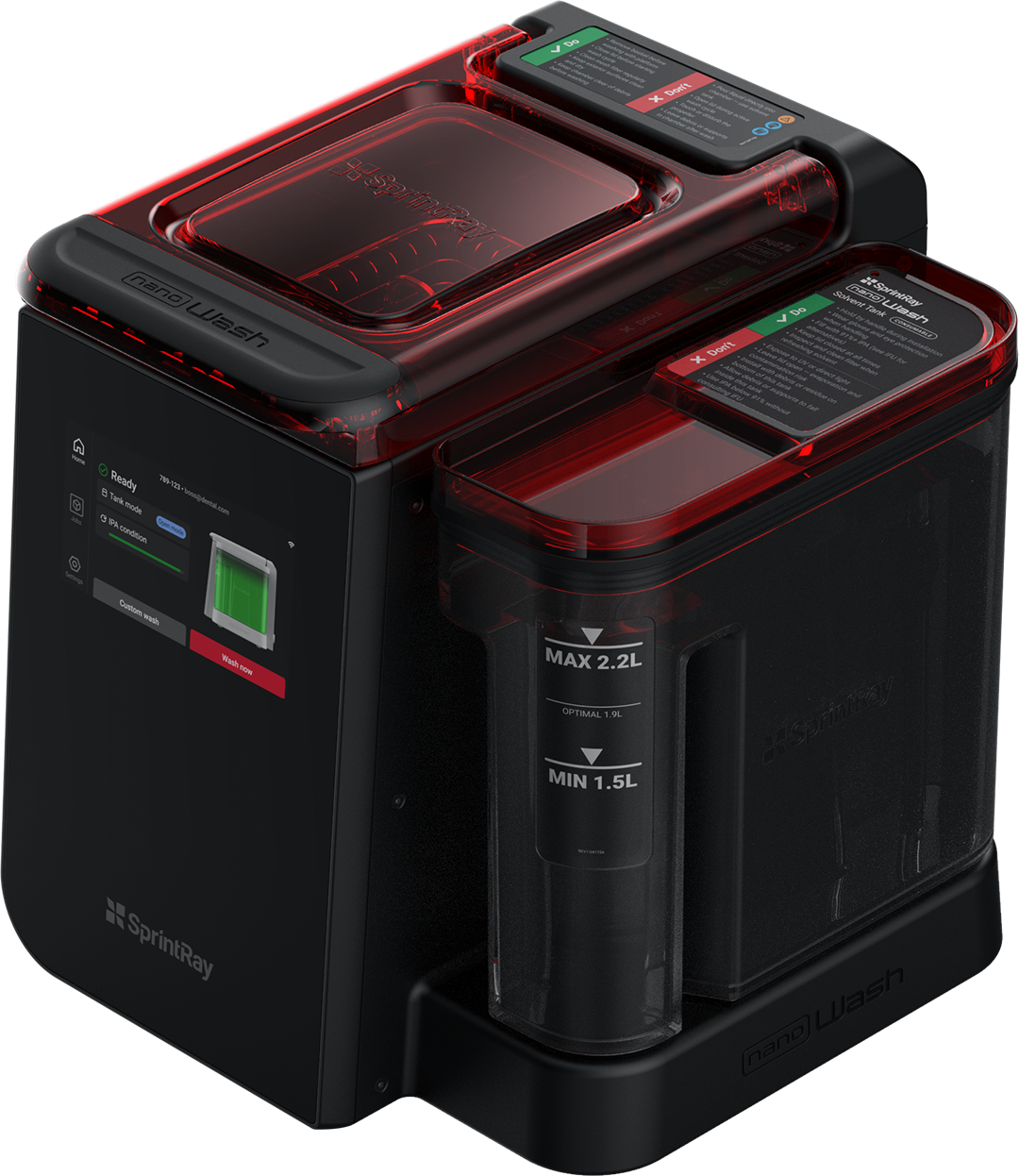

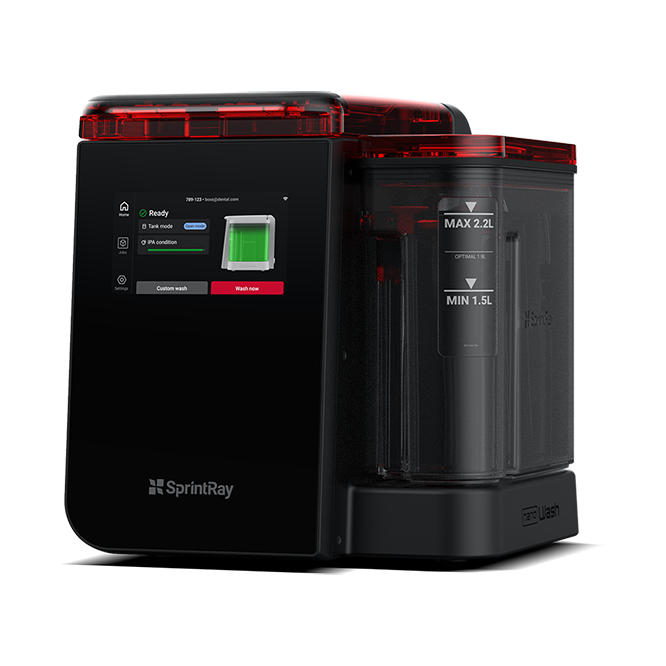

Wash
NanoWash
Automated washing and drying with a removable solvent tank and real-time IPA condition on the touchscreen.
- Six-minute cycle — wash and dry in one run
- Wash Now or Custom Wash — one-tap default or tailored cycles
- IPA condition monitoring — know when it is time to refresh solvent
- RFID solvent tanks — removable, with MIN, OPTIMAL and MAX fill lines

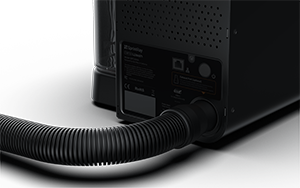

- Vapor extraction — exhaust port supports optional ducting
2.2 L
Max fill
1.9 L
Optimal
1.5 L
Min fill
Cure
NanoCure
Compact, powerful post-curing that finishes printed appliances in minutes.
- Dual wavelength — 365 nm for surface cure, 385 nm for depth cure
- Onboard heat — thermal system maximizes mechanical properties
- No nitrogen required — tack-free surfaces with atmospheric air
- 95% light uniformity — AI-optimized LED placement
- Auto settings — receives job info and selects the resin profile
| Material | Cure Time |
|---|---|
| Die and Model 2 | 2 min |
| Surgical Guide 3 | 3 min |
| NightGuard Flex / Firm | 4 min |
| OnX Tough 2 (hybrids) | 5 min |
| Apex Base & Teeth (dentures) | 10 min |
Applications
What You Can Print
From implant surgery to final delivery, NanoPrint covers the appliances your practice uses every day.

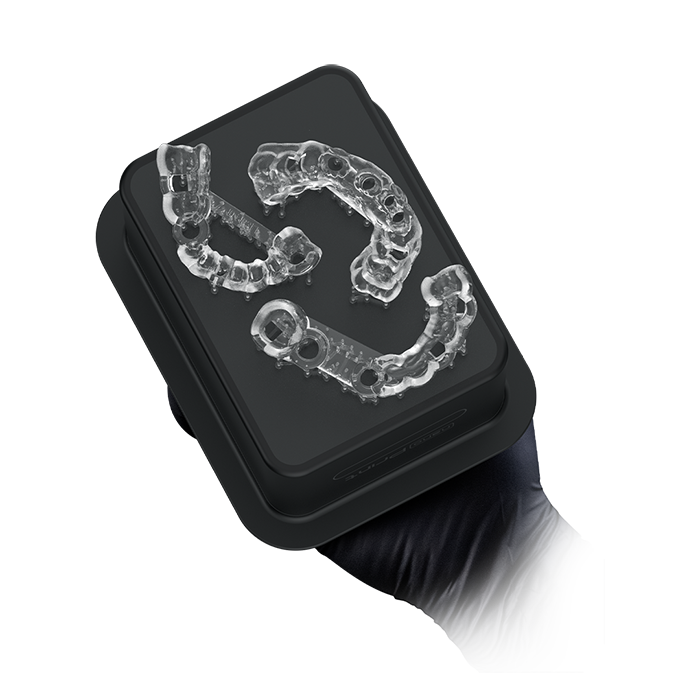

Surgical Guides
Guided-surgery templates for precise implant placement.

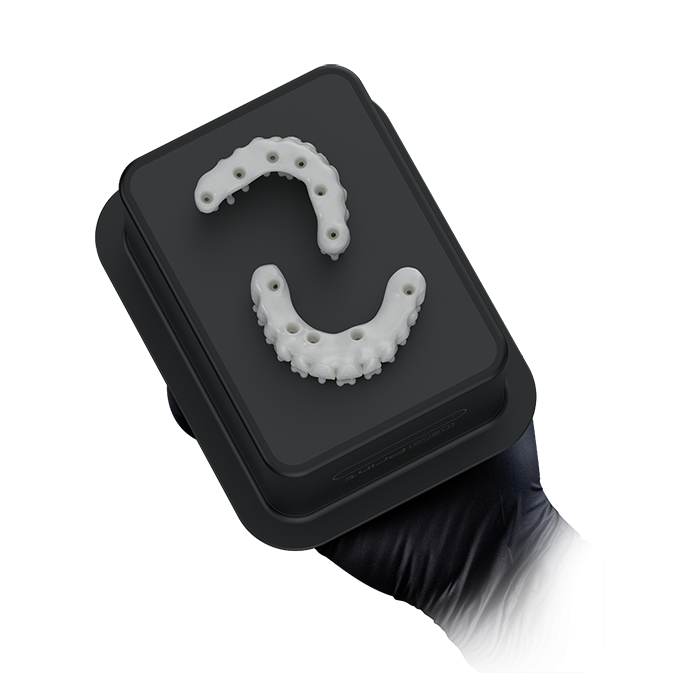

Full-Arch Hybrids
Hybrid prostheses in OnX Tough 2 for the full-arch workflow.

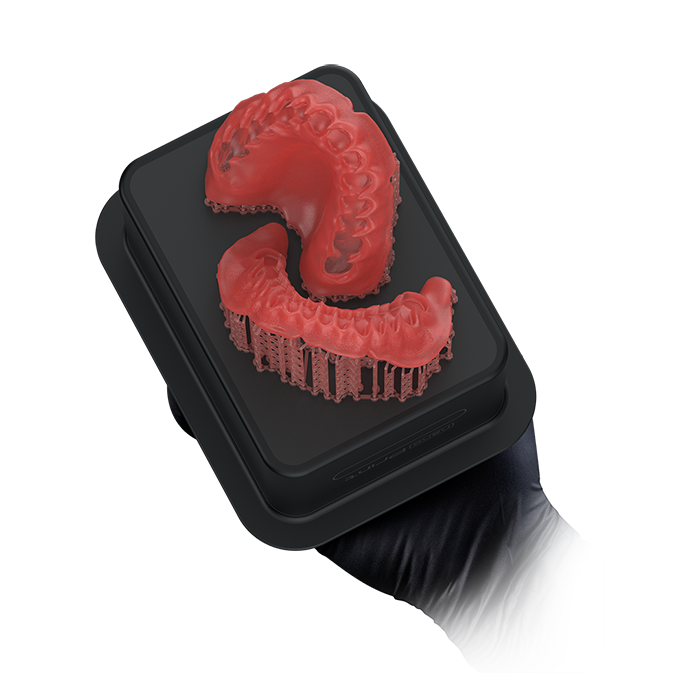

Removable Dentures
Denture bases and teeth with Apex Base and Teeth resins.

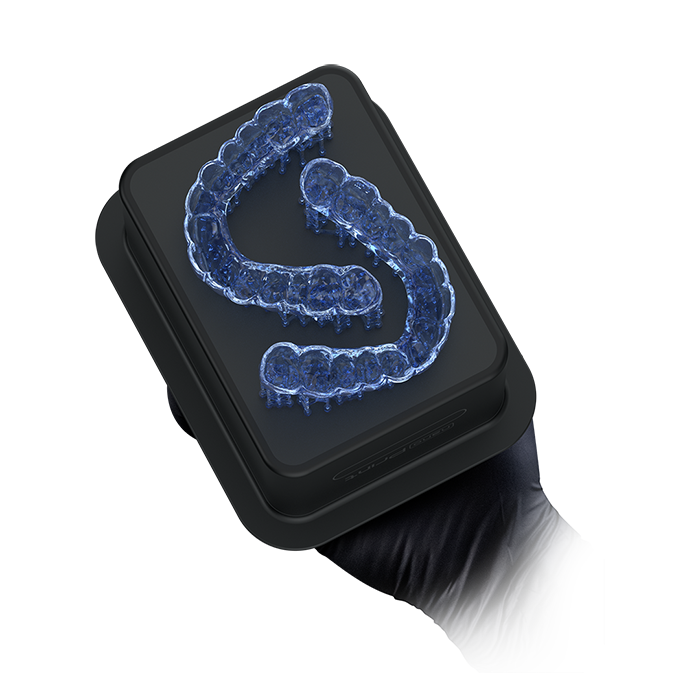

Night Guards
NightGuard Flex and Firm occlusal guards.

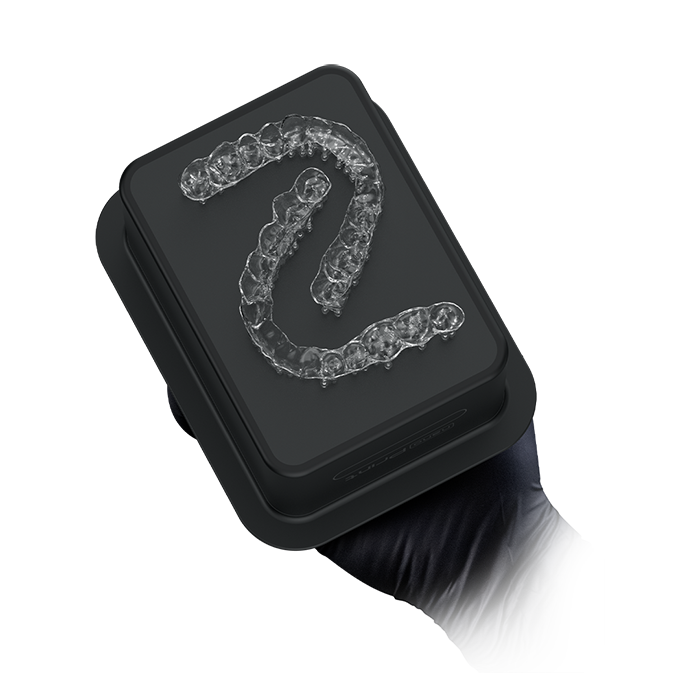

Clear Retainers
Directly printed retainers with SprintRay Retainer resin.

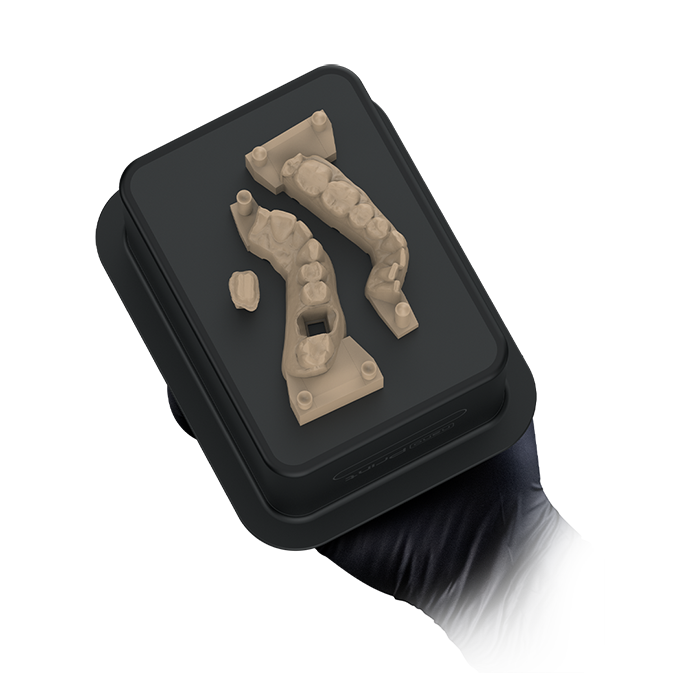

Models & Dies
Quadrant and full-arch models with removable dies.
How It Works
From Scan To Delivery
01
Design
Design in Exocad or your CAD software and send the file to the cloud.
02
Print
AutoPrint prepares the job. Confirm readiness on NanoPrint and press Print.
03
Wash
Move the platform to NanoWash for a six-minute wash and dry.
04
Cure
NanoCure selects the resin profile and finishes the part in minutes.

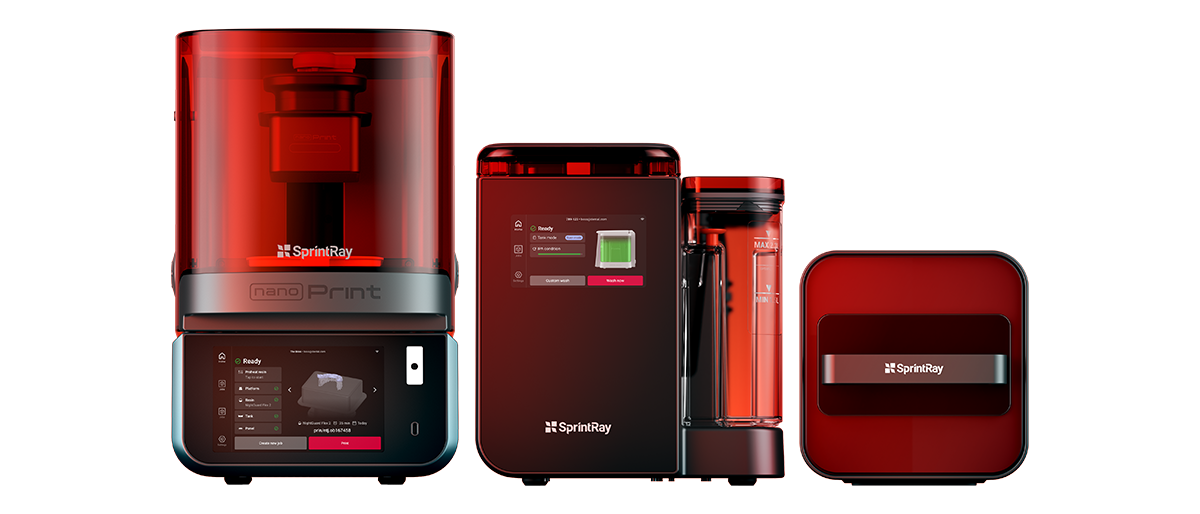

Built For Your Space
The Whole Workflow On One Countertop
NanoPrint, NanoWash and NanoCure line up side by side in about 72 cm — no dedicated lab room required.
IMAGE NEEDED: 548 × 560 px (export at 2×: 1096 × 1120 px) — delete this note after replacing
Scale Up — Dental 3D Printer
SprintRay Pro 2
Throughput Meets Precision.
Pro 2 is built from the ground up to be the most productive 3D printer in dentistry. With automated AI design, accurate printing and easy post-processing, the SprintRay ecosystem takes you from scan to print in less than an hour — with minimal training.
35 µm
Precision
15+
Workflows
4x
Throughput
- 4x throughput — print up to 6 dental arches in a single job
- 15+ workflows — night guards, crowns, aligner models, surgical guides, implant dentures, retainers and more
- Resin barcode scanner — onboard medical device tracking
IMAGE NEEDED: 347 × 202 px (export at 2×: 694 × 404 px) — delete this note after replacing
Pixel Perfect Accuracy
Optical Panel
A replaceable, patent-pending light engine with 35 µm resolution placed directly below the tank for zero distortion and incredible anatomical detail.
IMAGE NEEDED: 347 × 202 px (export at 2×: 694 × 404 px) — delete this note after replacing
Light Matters
385 nm UV-A Light
An ultra-powerful 385 nm LED offers 4x cure depth control and ideal photoinitiator absorption, with 96% light uniformity and improved mechanicals.
IMAGE NEEDED: 347 × 202 px (export at 2×: 694 × 404 px) — delete this note after replacing
User-Centric
12" Ultrawide Touchscreen
An all-new UI helps you manage your printing workflow, with an onboard barcode scanner for medical device tracking.
IMAGE NEEDED: 135 × 135 px (export at 2×: 270 × 270 px) — delete this note after replacing
Included
Standard Kit
Max throughput — 4x larger print area that fits 6+ arches.
IMAGE NEEDED: 135 × 135 px (export at 2×: 270 × 270 px) — delete this note after replacing
Optional
Arch Kit
More efficient and faster for single-arch cases.
Flexible Production
Optimize for your workflow with the included Standard Kit for batch production, or add the Arch Kit for faster print speeds.
The Complete Pro Ecosystem
Design, Print, Wash, Cure — One Platform
IMAGE NEEDED: 209 × 110 px (export at 2×: 418 × 220 px) — delete this note after replacing
ProWash S
IMAGE NEEDED: 209 × 110 px (export at 2×: 418 × 220 px) — delete this note after replacing
Midas Press
IMAGE NEEDED: 209 × 110 px (export at 2×: 418 × 220 px) — delete this note after replacing
Pro 2 Printer
IMAGE NEEDED: 209 × 110 px (export at 2×: 418 × 220 px) — delete this note after replacing
ProCure 2
IMAGE NEEDED: 209 × 110 px (export at 2×: 418 × 220 px) — delete this note after replacing
NanoCure

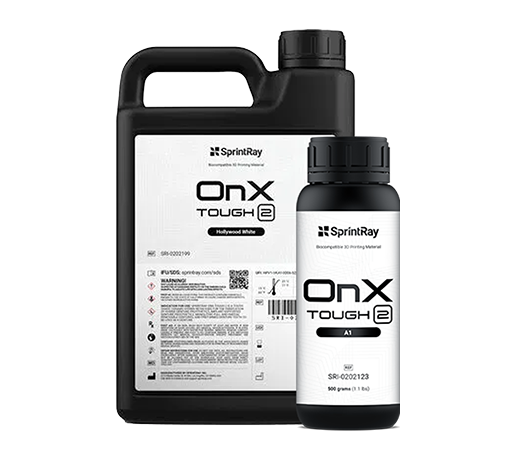

Resin Spotlight — Fixed Hybrid Dentures
SprintRay OnX Tough 2
The first FDA and MDR cleared 3D printing resin for fixed hybrid dentures — experience the precision, aesthetics and durability of 3D printed hybrids, delivered same-day at a lower cost.
- NanoFusion™ technology — uniform particle distribution for maximum fracture toughness
- Precision — 3D printing enables complex screw channel geometry for a passive fit
- Aesthetics — formulated for optical performance and shade stability
- Easy finishing — simple post-processing and characterization
Fracture Toughness (MPa·m1/2)
Source: SprintRay. Competitor values from published literature; not intended to imply head-to-head performance.
Shades
A1
A2
Bleach
500 g bottle
01
Clinical Appointment
Pre-surgical scan of the patient.
02
Cloud Design
Submit scans, book a slot and approve the design preview.
03
Surgery
Place implants with the S.I.N. Implant System.
04
Placement Scans
Send post-surgical scans and receive the hybrid file.
05
Print, Wash, Cure
Produce the hybrid in the SprintRay ecosystem.
06
Finish & Deliver
Stain, glaze and characterize tissue, then seat.
Consumables & Accessories
Keep Your Ecosystem Running
Replacement tanks, platforms, accessories and resins through the S.I.N. 360 eShop.

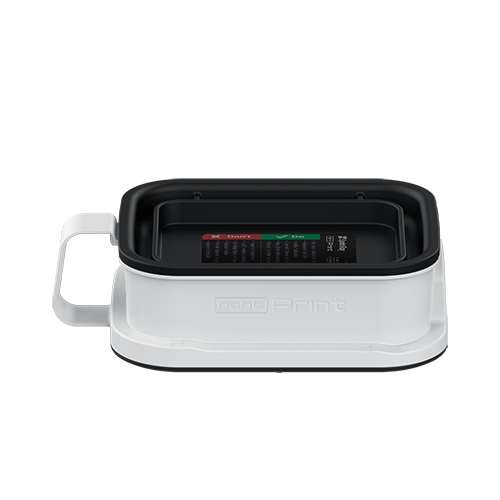

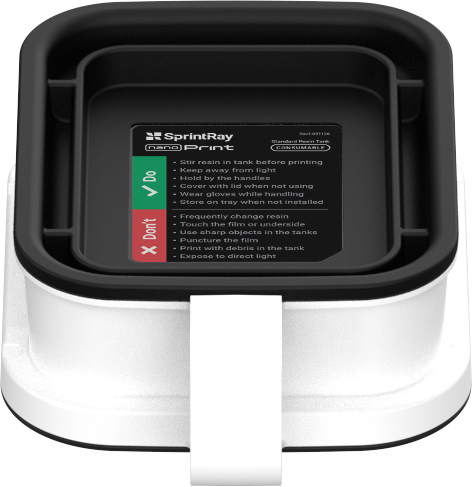

Resin Tank Lid & Storage Tray
Protects the resin tank film from damage and debris between prints.
Shop Now →

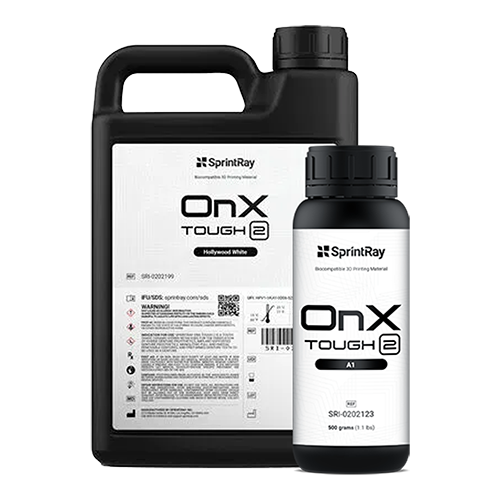

SprintRay Resins
Validated resins for guides, hybrids, dentures, night guards, models and more.
Shop Resins →
Support
We Support Your Printing Workflow
From installation to your hundredth print, the S.I.N. 360 team helps your practice get consistent results.
Getting Started
Get the Nano Series set up and your team confident on day one.
Installation & Training
Setup and hands-on onboarding for your team. Learn more
In-Office Digital Workflow Training
Training in your practice on the full-arch digital workflow. Learn more
CE Courses
Continuing education led by industry-leading doctors. View courses
Ongoing Support
Resources and parts to keep every device running.
Quick-Watch Support Videos
Short videos for printing, washing, curing and troubleshooting. Watch now
Downloads
Brochures, spec sheets and quick start guides. Downloads
Consumables & Parts Orders
Resins, tanks and accessories on the eShop or by email. orders@sin360.us
Print. Wash. Cure. Chairside.
See how the SprintRay Nano Series fits your practice and the S.I.N. 360 full-arch workflow.
